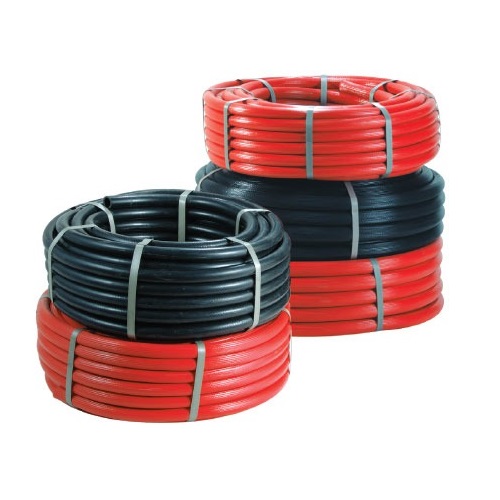

OSCO Thermoplastic Hose
OSCO Thermoplastic Hose
- Applications: The Hose has a wide range of applications in various Industries, Home, Agriculture Projects, Mines and Dams. Besides this, the Hose is widely used In Hose Reels in various Fire fighting applications.
- Construction: The inner Lining is seamless and smooth in bore. The reinforcements thereafter is of High strength synthetic or Natural Yarn. The outer Cover is then made of weather and abrasion Thermoplastic Material.
- Unique Feature: The "OSCO" thermoplastic hose has an excellence of ISI certification mark.
Technical Specifications for OSCO Thermoplastic Hose
| Bore (in mm) | Type | Lining Thickness (in mm) min. | Cover Thickness (in mm) min. | Loss in mass on Heating | Adhesion | P. P. (in Mpa) | W. P. (in Mpa) | Bursting pressure (in Mpa) min. | Remarks |
|---|---|---|---|---|---|---|---|---|---|
| 20.0+0.75 | 1 | 1.50 | 1.00 | 4% (Μαχ.) | 1.4KN/m (Minimum) | 0.96 | 0.60 | 1.90 | I |
| 20.0+0.75 | 2 | 1.50 | 1.00 | 4% (Μαχ.) | 1.4KN/m (Minimum) | 1.60 | 1.00 | 3.15 | NI |
