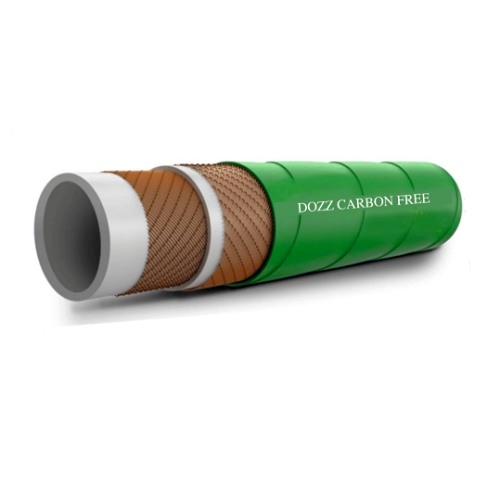

DOZZ CARBON FREE HOSE
DOZZ CARBON FREE HOSE
- Lining: Smooth, non conductive, natural / Synthetic / blend rubber compound.
- Reinforcement: Natural / Synthetic rubberized woven textile fabric.
- Tube: Smooth grey synthetic rubber tube, non-conductive.
- Cover: Oil, heat and electrical resistant synthetic rubber compound.
Technical Specifications for DOZZ
| Nominal I.D. | Mean O.D. | Max Working Pressure | Minimum Burst Pressure | Max Vacuum | Min. Bend Radius | ||||
|---|---|---|---|---|---|---|---|---|---|
| INCH | MM | INCH | MM | BAR | PSI | BAR | PSI | INCH HG | MM |
| 1/2" | 12.5 | 0.85 | 21.5 | 10 | 150 | 40 | 600 | 25 | 120 |
| 3/4" | 20.0 | 1.22 | 31.0 | 10 | 150 | 40 | 600 | 25 | 150 |
| 1" | 25.0 | 1.48 | 37.5 | 10 | 150 | 40 | 600 | 25 | 200 |
| 1 1/4" | 31.5 | 1.77 | 45.0 | 10 | 150 | 40 | 600 | 15 | 250 |
| 1 1/2 | 38.0 | 2.08 | 53.0 | 10 | 150 | 40 | 600 | 15 | 300 |
| 2 | 50.00 | 2.60 | 66.0 | 10 | 150 | 40 | 600 | 10 | 419 |
| 2.1/2" | 63 | 10 | 150 | 40 | 600 | ||||
| 3" | 75 | 10 | 150 | 40 | 600 | ||||
| 10 | 150 | 40 | 600 | ||||||
Temperature Range: -40°C to +100°C
