HIGH PRESSURE HYDRAULIC HOSE
SAE-100 R1/ DIN 20022 1SN
- SPECIFICATION: Conforming to Std. SAE - 100 R1
- Tube: Seamless oil resistant.
- Reinforcement: One braid of HTS Wire.
- Cover: Oil, weather & abrasion resistant.
- Temperature: (-40°C) to 120°C
- End Connection: Swaged or Crimped or Reusable Type.
- Application: For high pressure hydraulic oils, fuel, lubricating oils, water and air.

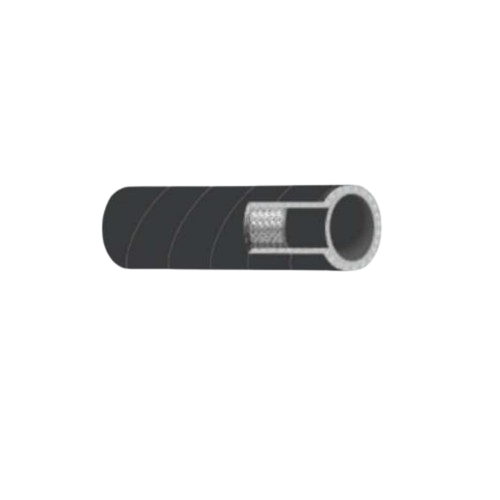

Construction:
Technical Specifications for DOZZ
| I.D. Inches | I.D. mm | O.D. mm | Working Pressure psi | Test Pressure psi | Min. Bend radius mm |
|---|---|---|---|---|---|
| 3/16 | 4.8 | 11.8 | 3000 | 6000 | 89 |
| 1/4 | 6.4 | 13.4 | 2750 | 5500 | 102 |
| 5/16 | 7.9 | 15.0 | 2500 | 5000 | 114 |
| 3/8 | 9.5 | 17.4 | 2250 | 4500 | 127 |
| 1/2 | 12.7 | 20.5 | 2000 | 4000 | 178 |
| 5/8 | 15.9 | 23.7 | 1500 | 3000 | 203 |
| 3/4 | 19.0 | 27.7 | 1250 | 2500 | 241 |
| 1 | 25.4 | 35.6 | 1000 | 2000 | 305 |
| 1 1/4 | 31.8 | 44.8 | 625 | 1250 | 419 |
| 1½ | 38.1 | 50.6 | 500 | 1000 | 508 |
| 2 | 50.8 | 64.1 | 375 | 750 | 635 |
SAE-100 R2/ DIN 20022 2SN
- SPECIFICATION: Conforming to Std. SAE - 100 R2
- Tube: Seamless oil resistant.
- Reinforcement: Two braid of HTS Wire.
- Cover: Oil, weather & abrasion resistant.
- Temperature: (-40°C) to 120°C
- End Connection: Swaged or Crimped or Reusable Type.
- Application: For high pressure hydraulic oils, fuel, lubricating oils, water and air.

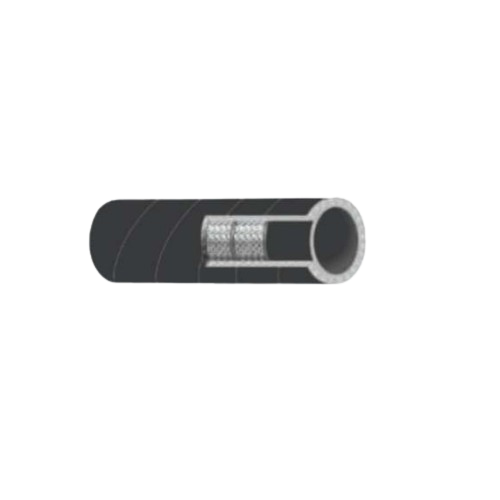

Construction:
Technical Specifications for DOZZ
| I.D. Inches | I.D. mm | O.D. mm | Working Pressure psi | Test Pressure psi | Min. Bend radius mm |
|---|---|---|---|---|---|
| 3/16 | 4.8 | 14.1 | 5000 | 10000 | 89 |
| 1/4 | 6.4 | 15.7 | 5000 | 10000 | 102 |
| 5/16 | 7.9 | 17.3 | 4250 | 8500 | 114 |
| 3/8 | 9.5 | 19.7 | 4000 | 8000 | 127 |
| 1/2 | 12.7 | 23.1 | 3500 | 7000 | 178 |
| 5/8 | 15.9 | 26.3 | 2750 | 5500 | 203 |
| 3/4 | 19.0 | 30.2 | 2250 | 4500 | 241 |
| 1 | 25.4 | 38.9 | 2000 | 4000 | 305 |
| 1 1/4 | 31.8 | 49.0 | 1650 | 3250 | 419 |
| 1½ | 38.1 | 56.5 | 1250 | 2500 | 508 |
| 2 | 50.8 | 68.6 | 1125 | 2250 | 635 |
