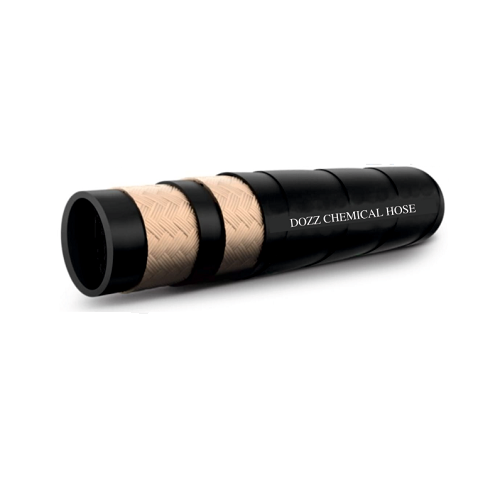

DOZZ Chemical Hose
DOZZ Chemical Hose
- Tube: Specially compounded chemical resistant EPDM rubber black.
- Reinforcement: High tenacity synthetic textile braid (above 1.1/2" with helical wire)
- Cover: Specially compounded chemical resistant EPDM rubber back.
Technical Specifications for DOZZ
| Nominal I.D. | Mean O.D. | Max Working Pressure | Minimum Burst Pressure | Max Vacuum | |||
|---|---|---|---|---|---|---|---|
| INCH | MM | MM | BAR | PSI | BAR | PSI | BAR |
| 1/2" | 12.5 | 22.0 | 10 | 150 | 40 | 600 | 0.9 |
| 3/4" | 20.0 | 31.0 | 10 | 150 | 40 | 600 | 0.9 |
| 1/2" | 12.5 | 22.0 | 10 | 150 | 40 | 600 | 0.9 |
| 1" | 25.0 | 38.0 | 10 | 150 | 40 | 600 | 0.9 |
| 1 1/4" | 31.5 | 45.0 | 10 | 150 | 40 | 600 | 0.9 |
| 1 1/2" | 38.0 | 52.0 | 10 | 150 | 40 | 600 | 0.9 |
| 2" | 50.00 | 67.0 | 10 | 150 | 40 | 600 | 0.9 |
| 2.1/2" | 63.5 | 80 | 10 | 150 | 40 | 600 | 0.9 |
| 3" | 76 | 92 | 10 | 150 | 40 | 600 | 0.9 |
| 4" | 102 | 118 | 10 | 150 | 40 | 600 | 0.9 |
Temperature Range: Specially -30°C to +100°C
